NOVELLUS



  IN OEM Ref. No. Part No. Description
1 02-00343-02 14-01001 Harness Assy, 12"
2 02-00343-03 14-01002 Harness Assy, 17.5"
3 02-00343-04 14-01003 Harness Assy, 26.5"
4 02-00393-05 14-01004 Assy, Sensor Harness, 23.75"
5 02-00393-06 14-01005 Assy, Sensor Harness, 13.75"
6 02-00397-00 14-01006 Harness Assy, Sensor 26.5"
7 02-00402-02 14-01007 Harness Assy, Sensor 12.0"
8 02-00402-03 14-01008 Harness Assy, Sensor 17.5"
9 02-10472-00 14-01009 Indexer Assembly, Left
10 02-10472-01 14-01010 Indexer Assembly, Right

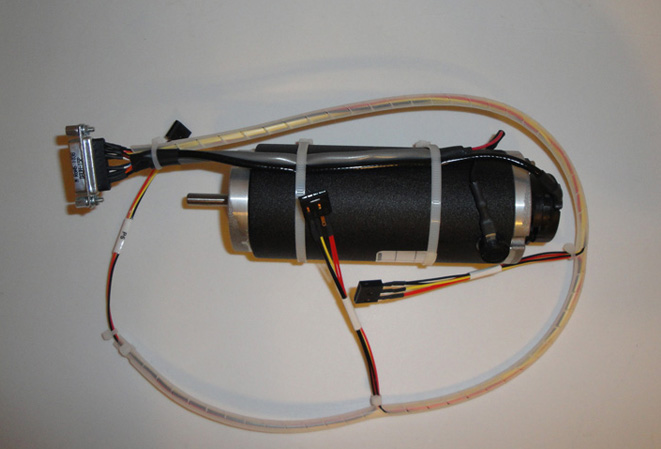

11 02-032278-00 14-01011 Assy, Z Motor, Indexer Left

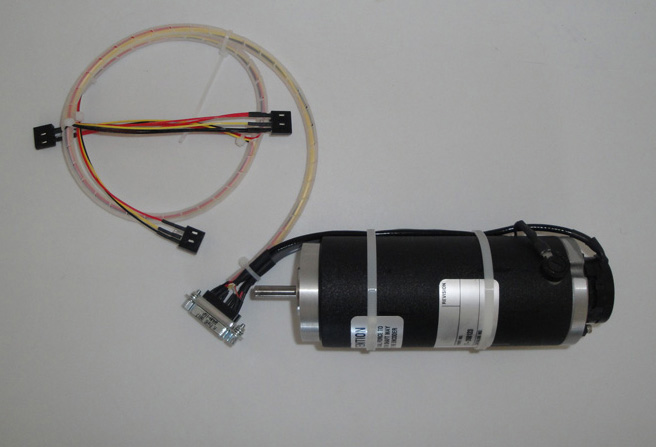

12 02-032279-00 14-01012 Assy, Z Motor, Indexer Right

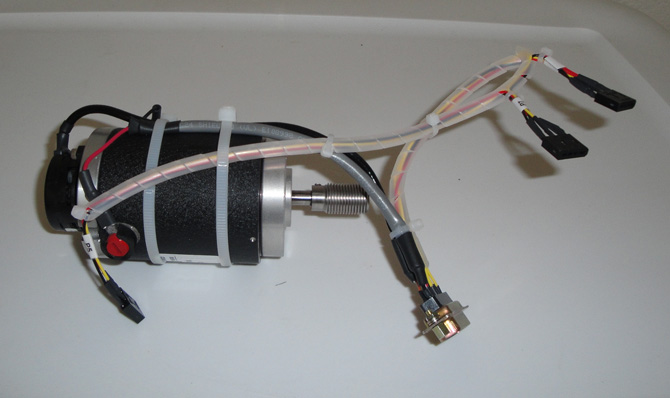

13 02-032280-00 14-01013 Assy, Ext. Motor, Indexer Left

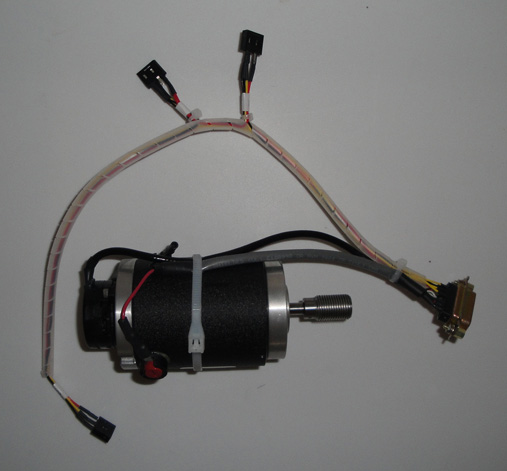

14 02-032281-00 14-01014 Assy, Ext. Motor, Indexer Right
15 02-111903-00 14-01015 Feedthru Assy, NG
16 02-139453-16 14-01016 Orifice/E38 O-Ring Assy, .016

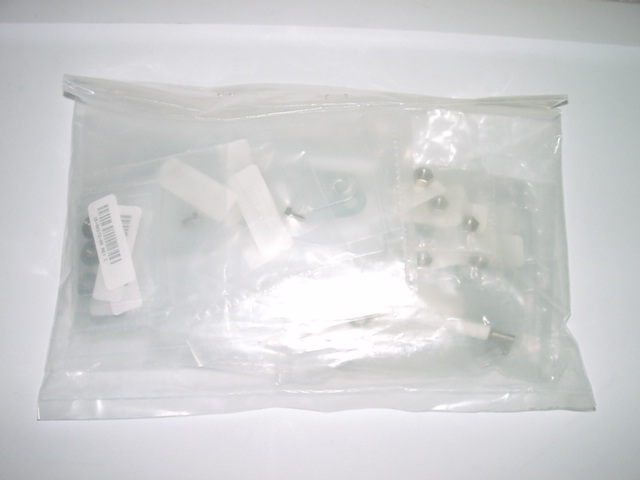

17 05-00024-00 14-01017 PM Kit, Heater Connector

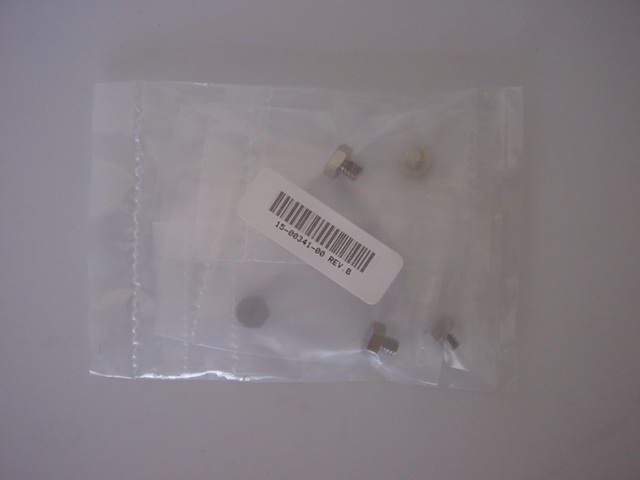

18 15-00341-00 14-01018 Screw, HexHd, 1/4-20 x 1/4", Ni

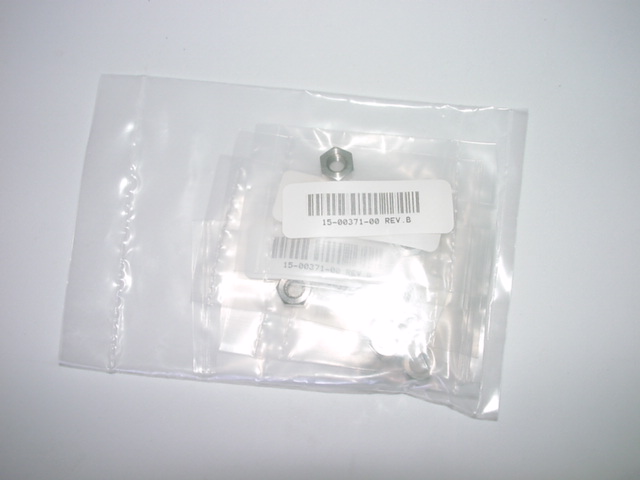

19 15-00371-00 14-01019 Nut, Hex, 1/4-20, Ni

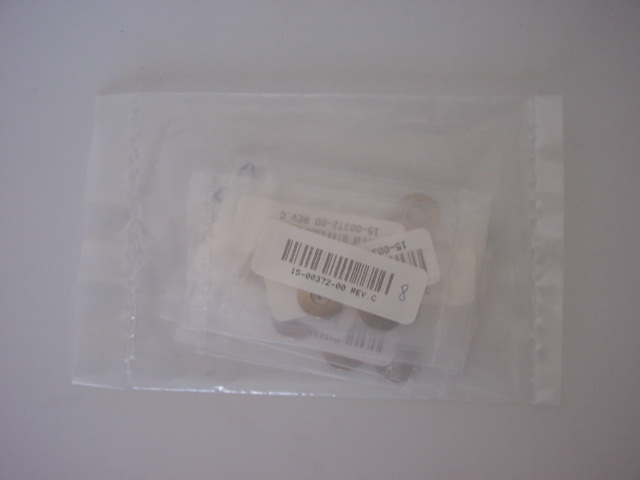

20 15-00372-00 14-01020 Washer, Flat, 1/4", Ni

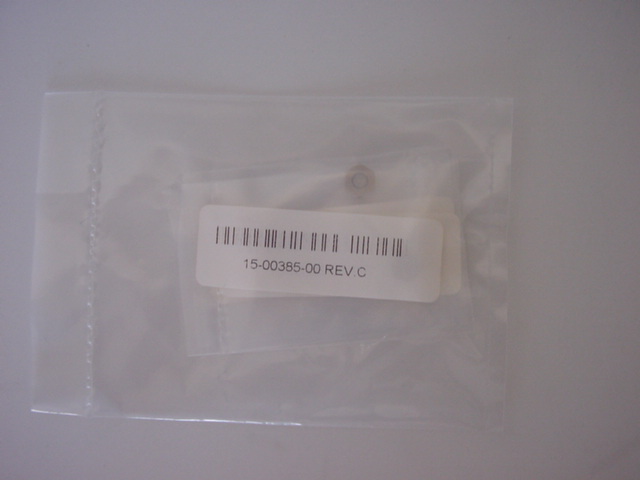

21 15-00385-00 14-01021 Nut, Hex, 10-32, Ni

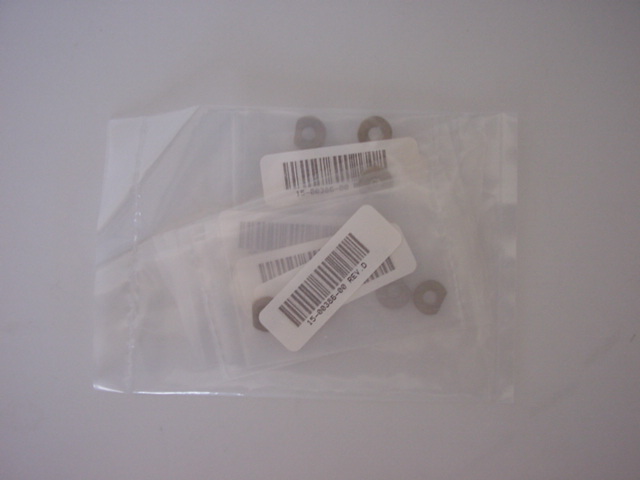

22 15-00386-00 14-01022 Washer, Flat, #10, Ni
23 15-00399-03 14-01023 Screw,Top Spindle,Ni

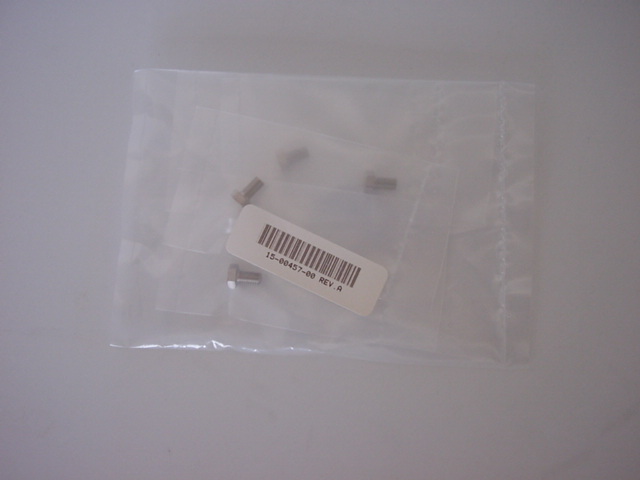

24 15-00457-00 14-01024 Screw, HexHd, 10-32 x 3/8, Ni

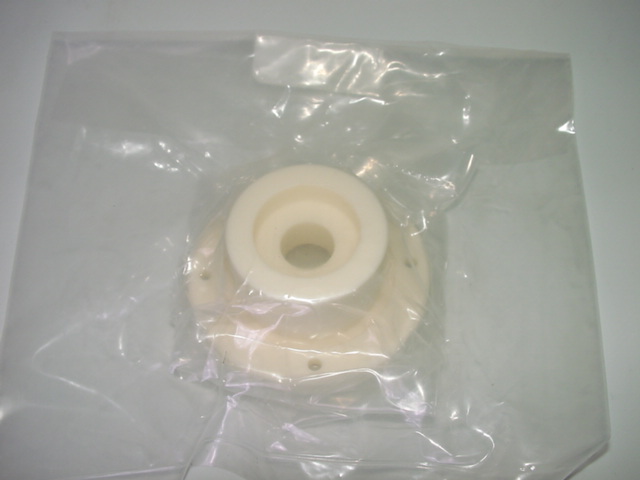

25 15-00475-00 14-01026 Insulator, Gas Feedthrough, Ceramic


Page 1 of 3

  1 | 2 | 3 Next

Mattron supplies common electrical and mechanical components for semiconductor equipment.

Please email us at sales@mattron.com to check the availability of parts listed above.
